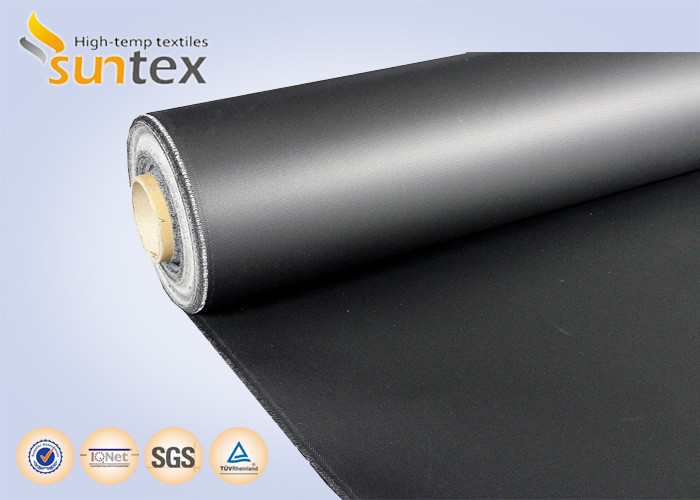

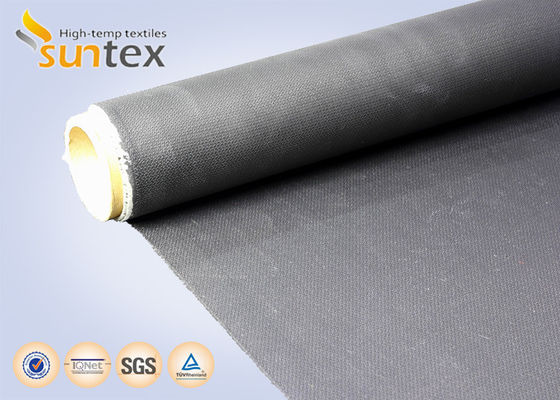

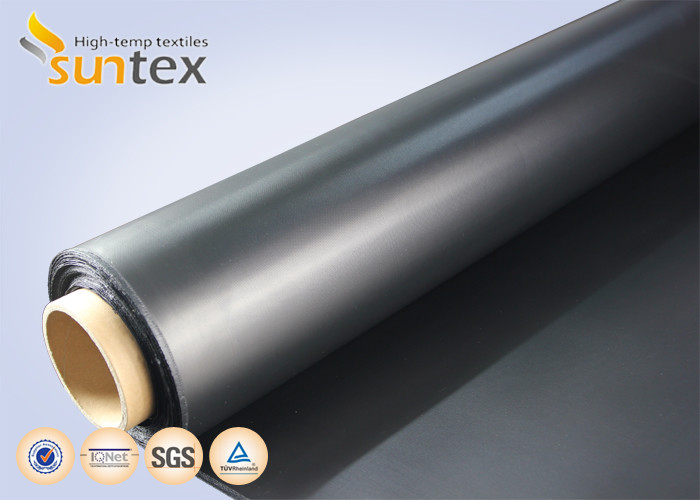

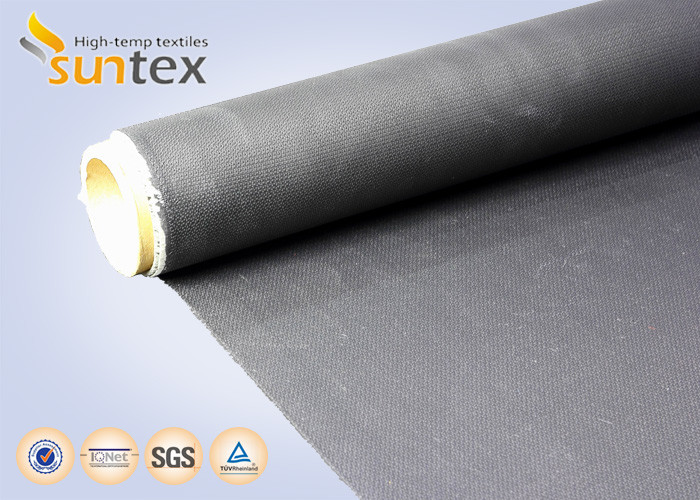

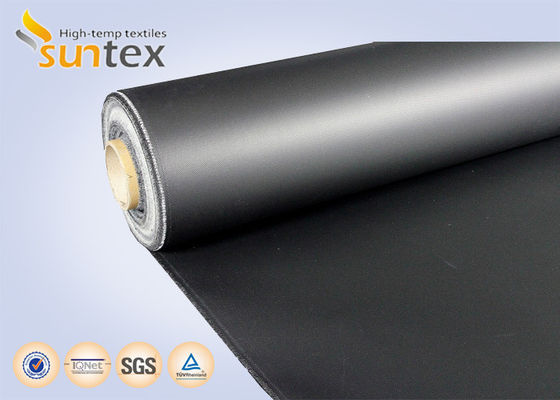

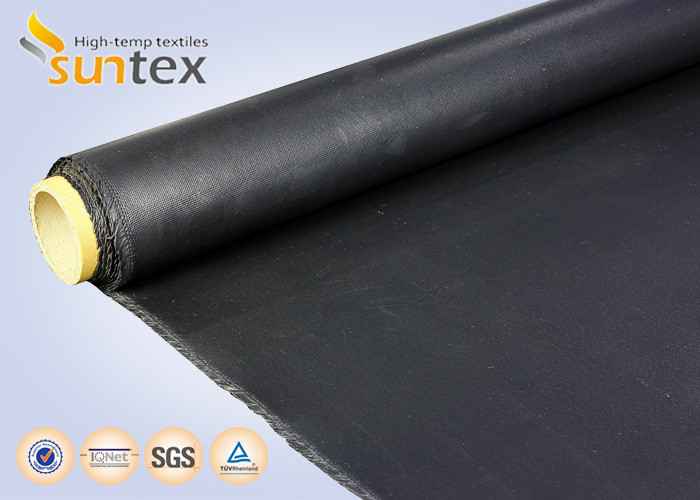

ฉนวนกันความร้อนที่ทนไฟผ้าใยแก้วเคลือบด้วย Neoprene

Place of Origin:จีน
Brand Name:SUNTEX
Model Number:GF431P-NE245-4005
Minimum Order Quantity:ม้วน 20 แผ่น
Payment Terms:T / T; L / C, Paypal ...
Supply Ability:500000sqm / เดือน
Product Details
เน้น:

อะครีลิคเคลือบไฟเบอร์กลาส

,

ผ้าใยกลิ้งม้วน

Weight: 600 กรัม / ตารางเมตร
Thickness: 0.45 มม
Color: ดำ
Yarn Tape: E แก้ว
Weave Tape: ซาตินสาน
Width: 1.52m
Coating: Neoprene
Standing Temperature: จาก -50 ℃ถึง 550 ℃
Product Description

ฉนวนกันความร้อนผ้ากันไฟไฟเบอร์กลาสเคลือบด้วยนีโอพรีน



GF431P-NE245-4005 เป็นผ้าไฟเบอร์กลาสน้ำหนักปานกลางเคลือบด้วยยางนีโอพรีนคุณภาพสูงไม่ลามไฟผลิตภัณฑ์นี้ออกแบบมาสำหรับการผลิตแผ่นฉนวนกันความร้อนที่ถอดออกได้เสื้อแจ็คเก็ตและที่นอนวัสดุนุ่มและยืดหยุ่นได้และเย็บง่าย



ผลิตภัณฑ์นี้เหมาะอย่างยิ่งสำหรับการผลิตตัวชดเชยและฝาปิดส่วนขยาย



การใช้งานหลัก

- ขั้วต่อท่ออ่อน

- ผ้าห่มเชื่อม

- ระบบควบคุมการยิงอื่น ๆ



ผ้าพื้นฐาน ลักษณะผ้าฐาน No. GF431P
  (เมตริก) (ภาษาอังกฤษ) วิธีการทดสอบ
สาน 4H ซาติน Crowfoot
เส้นด้าย
วิปริต EC9 68 1 ﹡ 2 คลื่นไฟฟ้าหัวใจ 75 1/2
ผ้า EC9 68 1 ﹡ 2 คลื่นไฟฟ้าหัวใจ 75 1/2
การก่อสร้าง
วิปริต 18 ± 1 ปลาย / ซม 48 ± 3 ปลาย / นิ้ว ASTM D 3775-96
ผ้า 12.6 ± 1 หยิบ / ซม 32 ± 3 หยิบ / นิ้ว ASTM D 3775-96
น้ำหนัก 430 ± 30 ก. / ม2 12.6 ± 0.9 ออนซ์ / หลา2 ASTM D3776-96
ความหนา 0.37 ± 0.06 มม 0.015 ± 0.002 นิ้ว ASTM D1777-96

ผ้าเคลือบ ลักษณะการเคลือบ No. NE245-4005
การเคลือบผิว ยางนีโอพรีนสองด้าน
น้ำหนัก 600 ± 30 ก. / ม2 17.35 ± 0.88 ออนซ์ / หลา2 ASTM D3776-96
ความหนา 0.47 ± 0.02 มม 0.019 ± 0.0008 นิ้ว ASTM D1777-96
สี ดำ
ทนไฟ สารหน่วงไฟ
ความต้านทานต่ออุณหภูมิ

ผ้าแก้วสูงถึง 5500C (1,0000F)

เคลือบยางนีโอพรีนสูงถึง 1500C (3600F)
